Linyi Xiangying Machinery Manufacturing Co.,Ltd
Multi-layer MDF/HDF production line machinery manufacturer/Factory
Multi-layer MDF/HDF production line machinery manufacturer/Factory
LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD
Treat people with sincerity , establish business with faith
Since our company was established in 1992,( Linyi Xiangying)Youming machinery keeping innovations and perfection to commit themselves in producing and sells best quality wood making machinery, continuous innovation , keep improving. Our company always focus on the technology improve, in order to development and research product , cooperate with a number of colleges and universities to set up experimental bases to ensure product quality. Company has set up a whole set of after-sales service system aiming at obtaining long-term trust from users, including regular visits to users, tracking and monitoring the use of equipment, and timely providing technical assistance to customers.
Our main products are Particle board production line ,OSB/LOSB production line ,H/MDF production line, based on our good quality as well as perfect service, our business scope expands extensively both at home and more than 20 countries such as Vietnam, Malaysia, India ,Pakistan, Bangladesh, Russia, Turkey and so on. And the machinery are well praised by our clients. Youming(Linyi Xiangying) continuously create unlimited value for more users!
What is MDF?
Medium-density fibreboard (MDF) is an engineered wood product made by breaking down hardwood or softwood residuals into wood fibers, often in a defibrator, combining it with wax and a resin binder, and forming panels by applying high temperature and pressure. MDF is generally denser than plywood. It is made up of separated fibers, but can be used as a building material similar in application to plywood. It is stronger and much denser than particle board. The name derives from the distinction in densities of fibreboard. Large-scale production of MDF began in the 1980s, in both North America and Europe.
Multi-layer MDF production line
MDF/HDF is a kind of excellent substitute for natural wood panel with wide application. Materials such as wood and other plant fiber after being added suitable urea formaldehyde resin or other adhesives forms 450-880 kg/m3 panels on hot press. The panels are characterized with tight and smooth surface, uniform core layer and good wood working performance.
The line consists of chip preparation, fiber preparation, glue mixing and applying, mat-forming and hot-pressing, cooling and sizing, sanding.
01. Chip prepare section
Drum chipper is our conventional product widely used in the industrial production of paper, MDF and PB, etc. Raw materials are primarily small diameter logs, logging residues such as branches and twigs as well as wood-processing leftovers like planks, slabs, cores and veneer wastes, etc.. Our company can also supply a complete set of equipment for chip preparation section. The chipper mainly consists of machine base, knife rotor, upper and lower feeding rollers, hydraulic system and electrical control system.
01. Fiber prepare section

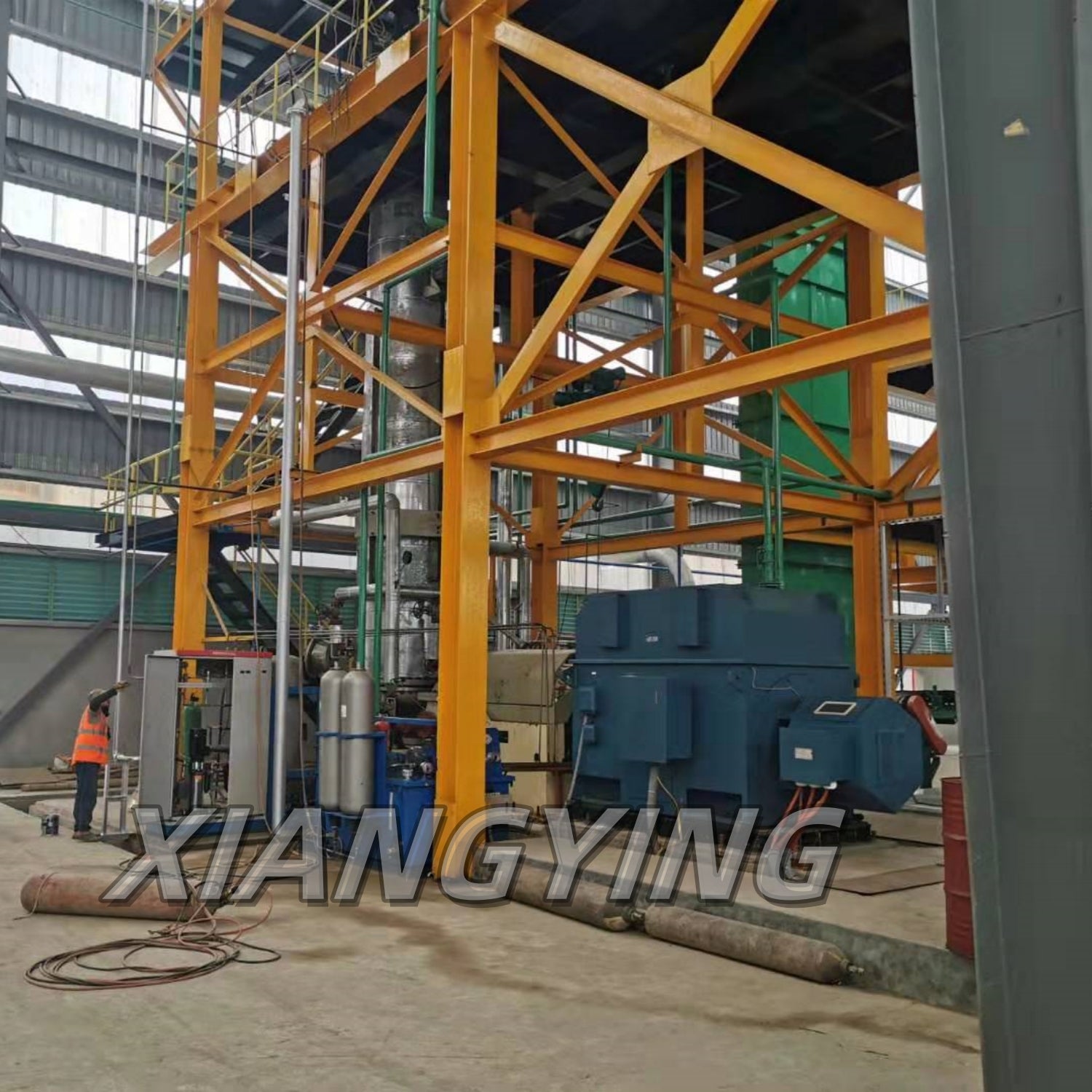

Chips are transported to upper bin of refiner and positively fed to digester by screw feeder for steaming. Steamed chips will be isintegrated to fiber under the force of heat and mechanism. Mix drying medium and wet fiber which is in the state of suspension with the help of high pressure air flow, and thus exhaust moisture in fiber via drying medium to get dry fiber. Dry fiber falls on belt conveyor through cyclone discharge valve, and then be transported to dry fiber bin for storage.
02. Glue dosing system
Process of glue applying before drying is adopted. Feed molten paraffin and water-proof additive to refiner. Paraffin is mixed with fiber uniformly under the force of refiner plates. Glue is transported to the blow line of fiber discharge valve. This section can be controlled by PLC or computer.
02. Dryer section
The fibers after mixing with glue is transported to drying ducts along with steam, and transported to cylcone separator by hot air. And thus the water in the fibers is drained out with hot air. The dried fibers and air is separated and then transported to silo.
03. Forming section

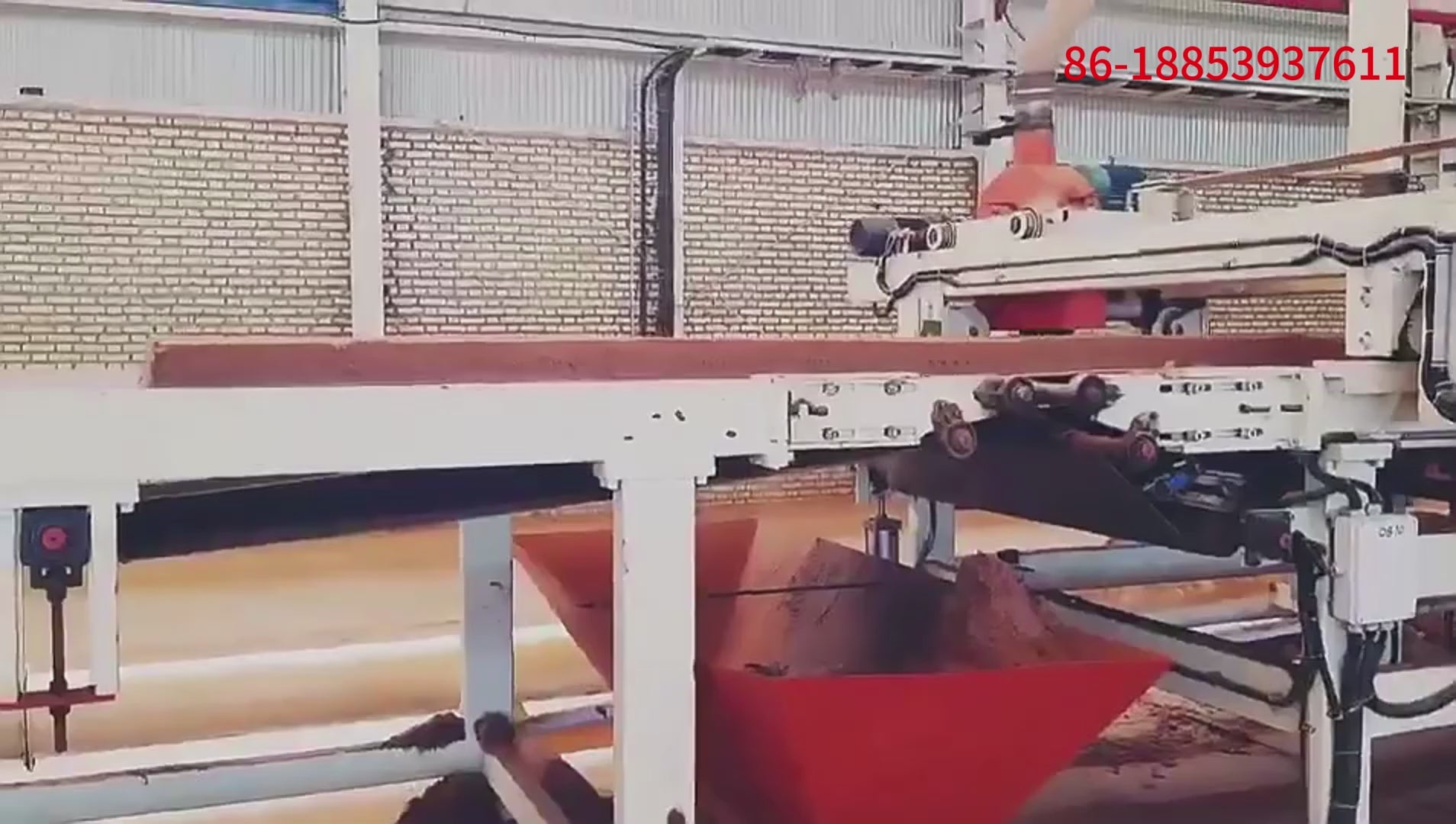

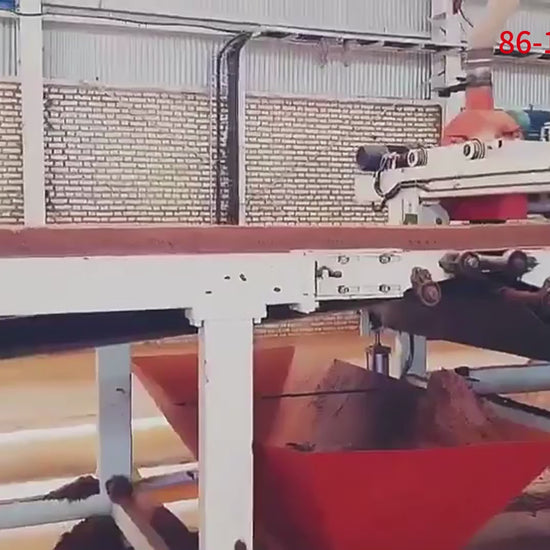

Fluffy mats will be pressed by pre-press. Pressed mats are cut into definite length by longitudinal and transversal saw, then transported to loader passing through accelerating conveyor, storage conveyor and extension conveyor. When finishing loading mats, carriage in the loader will feed conveying belt and mats into hot press, at the same time, shovel head at the front end of conveying belt pushes out pressed board.
04.Pre-press section
When carriage comes to terminal, boards have been into unloader, and mats also arrives to due position. Carriage returns, conveying belt turns forward. Mats are in the relative still state and stay on the platen of press when velocity of conveying belt is the same as the returning speed of carriage.

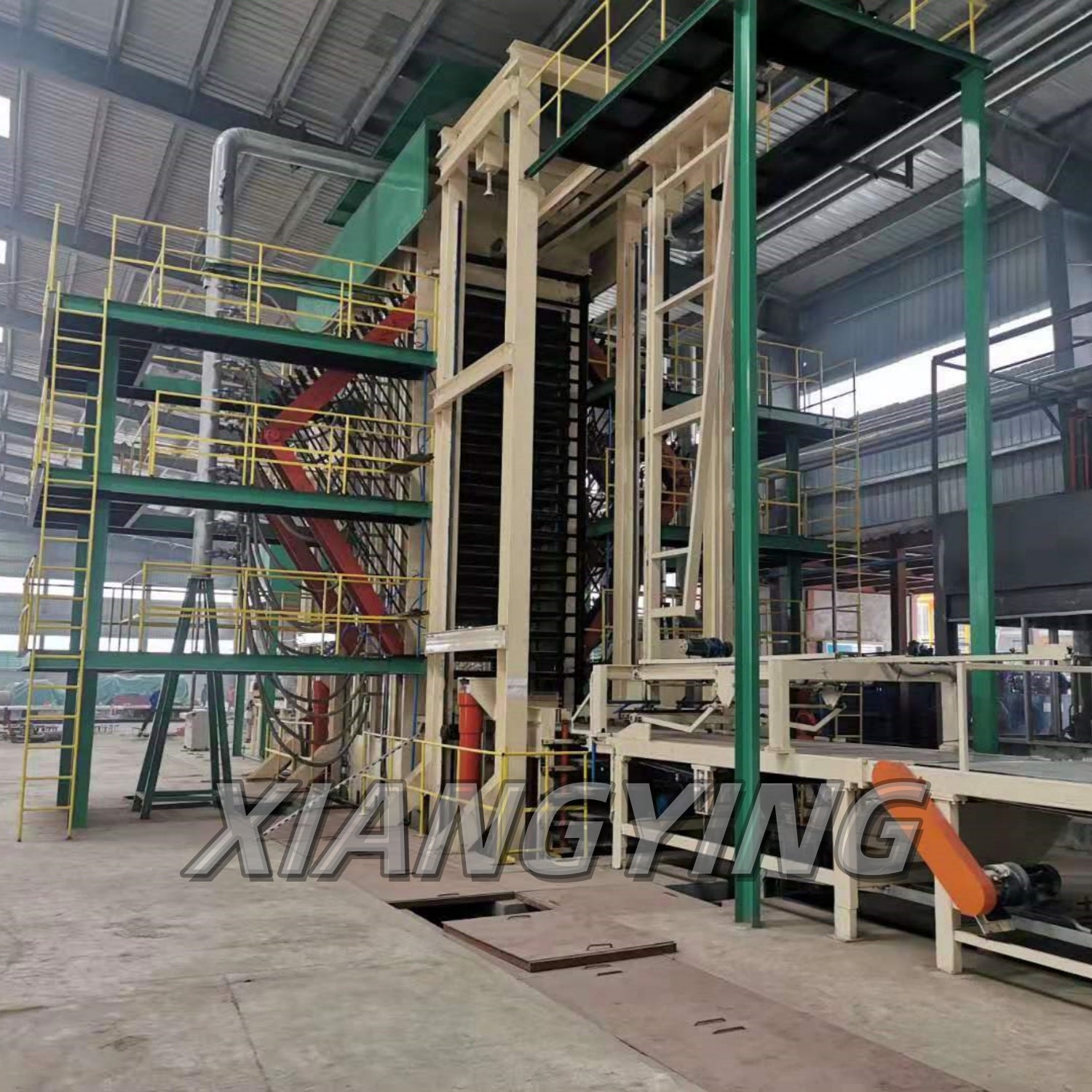

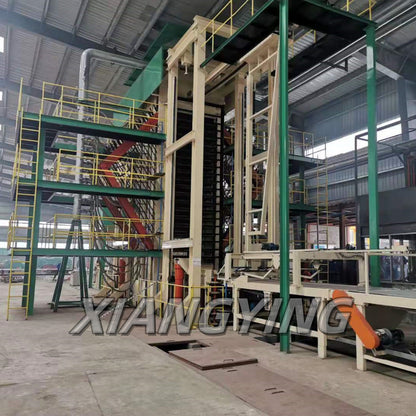

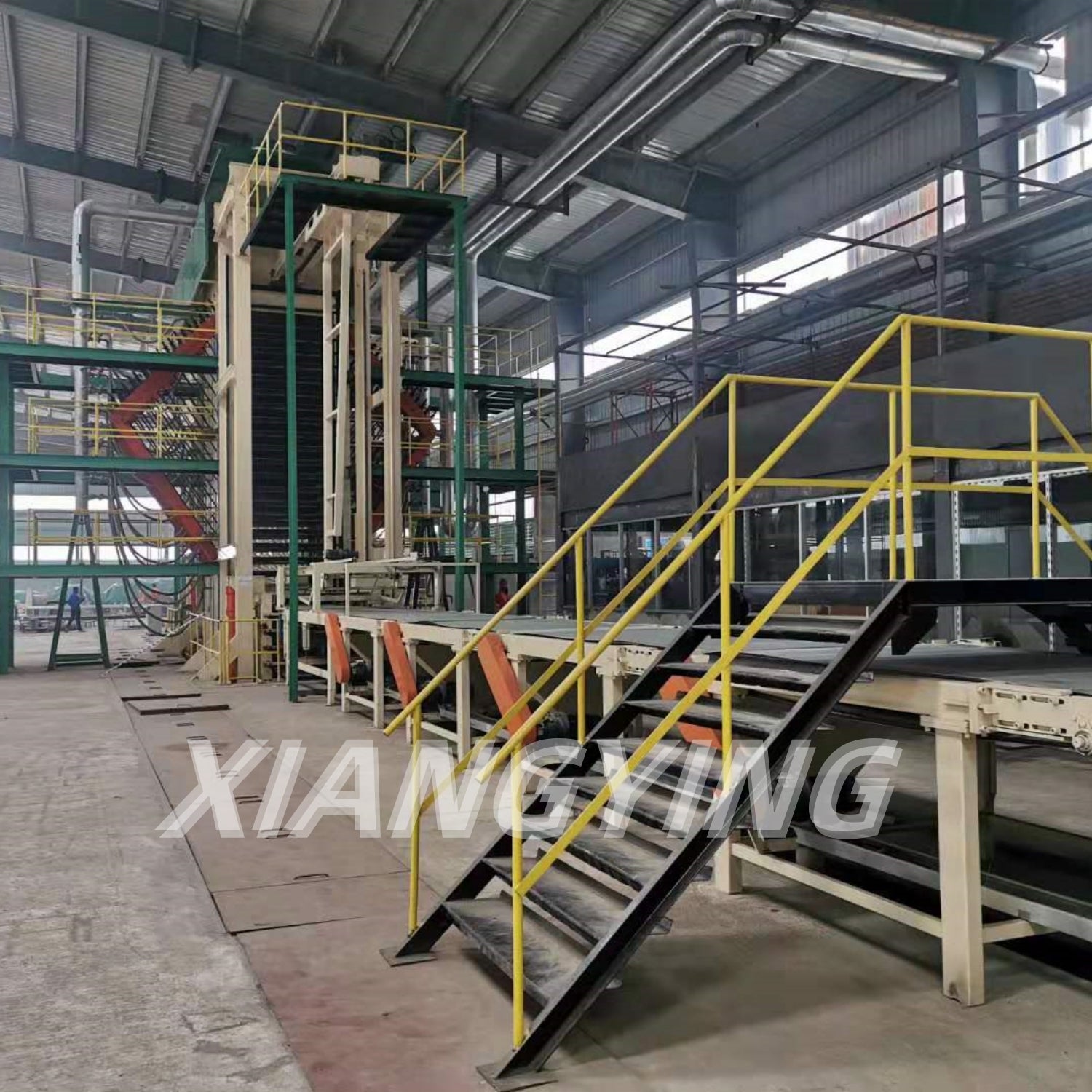

05. Hot press section
Glue in the mats cures, thanks to temperature and pressure in hot press, and hence boards with definite intensity and thickness form. Rough boards will be put on support via unloader. Outfeeding conveyor will unload boards one after another to next section when cage comes down.
06. Cutting section
After hot press machine , the boards to the cutting machine , 4x8ft,6x9ft,6x12ft all can design depends on customer requirement.
07. Cooling section
Rough boards after air cooling are turned into cut-to-size boards via longitudinal and transversal saw. And then cut-to-size boards are sanded, sorted, stacked and packed for storage.
08.Sanding section
The board are sanded, checked and stored. And need 2sets sanding machine, one is 2-head sanding machine; another one is 4-head sanding machine.
09. Control system
Full automatic PLC control system, normally we use SIMENS or OMRON PLC system , contactor and switch use Schneider and other world famous brand .
10.Packing (Standard sea packing)
| NO. | Item | Technical data |
| 1 | Project name |
1.Full automatic MDF/HDF production line 2.Medium density/High density board making machinery production line 3.Fiber board production line machinery manufacture factory 4.MDF/HDF hot press machinery production line supplier factory |
| 2 | Board size |
|
| 3 | Raw material |
1. Wood 2. Bagasse 3.Wood waste/Scrap wood |
| 4 | Glue/Resin |
|
| 5 | Capacity |
1. 30000cbm/year(100cbm/day capacity) 2. 60000cbm/year(200cbm/day capacity) 3.100000cbm/year(300-350cbm/day capacity) 4.120000cbm/year(400cbm/day capacity) 5.150000cbm/year(500cbm/day capacity) 6. 200000cbm/year(600-700cbm/day capacity) |
| 6 | Labor require | 15-20 worker/shift |
| 7 | Power consumption | 1000-8000kw/h depends on different capacity |
