Full automatic Multi-layer OSB/FOSB/LOSB production line/Oriented Strand Board machinery manufacturer

Located in Linyi City,Shandong Province,"the Largest Wood BasedPanel Production Base of Asia”,LINYI XIANGYING MACHINERY MANUFACTURING CO.LTD (Linyi Xiangying Machinery Manufacturing Co.,Ltd)is an aggressive manufacturer which specialized in research, development, manufacture and marketing in the field of wood working machines.Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.Our main products are Particle board production line,Plywood production line,MDF production line,Melamine laminating product online, etc. Based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20counties such as Vietnam, Malaysia, Pakstan, Bangladesh,Russia,Turkey and so on.And they are all well praised by our clients.Choose Xiangying machinery,Create measureless value.

Oriented strand board (OSB), also known as flake board, is a type of engineered lumber similar to particle board, formed by adding adhesives and then compressing layers of wood strands (flakes) in specific orientations. OSB may have a rough and variegated surface with the individual strips of around 2.5 cm × 15 cm (1.0 by 5.9 inches), lying unevenly across each other and comes in a variety of types and thicknesses.

OSB now is widely used in the fields of furniture manufacturing, building decoration, packaging and so on.

OSB（Oriented strand board）production line, working flow: wood debarker→flaker→chip silo storage→chip drying→screen→glue dosing and spreader→forming→prepress→hot press→cooling→cutting→storage

Since the long, slender strands in OSB production are aligned crosswise, OSB boards have a higher flexural strength than particleboard. This makes them ideal for use in the construction industry and as packaging material. Take advantage of our efficient, two-stage process for strand production, using both fresh and inexpensive recycling wood for OSB production.

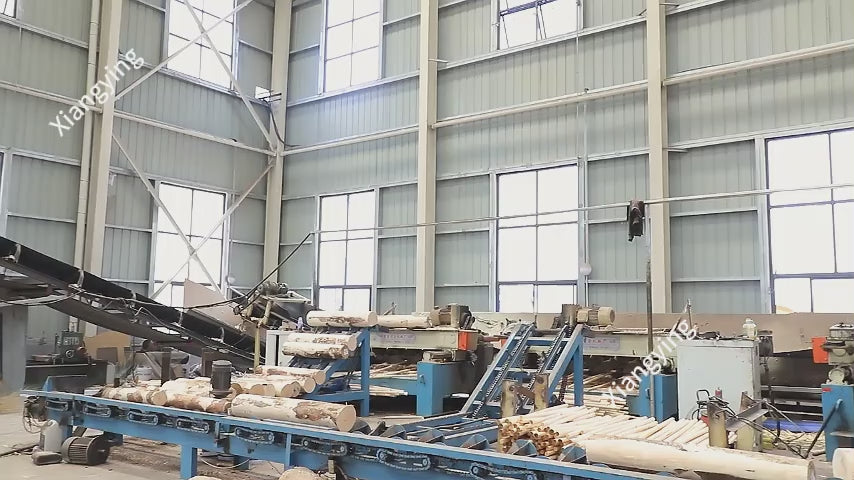

1.Chip preparation section

Raw material is reduced into qualified chips by the OSB chipper, after the chipper machine ,we can got 40-100mm length ,5-20mm width,0.3-0.7mm thickness chips.

2.Sifting section

After got the chips , through the belt conveyor ,the chips go into the rong screen section ,after the screen we can separate the good quality chips and disqualification chips ,the satisfying chips go into the next processing, and disqualification chips back to chipper again working.

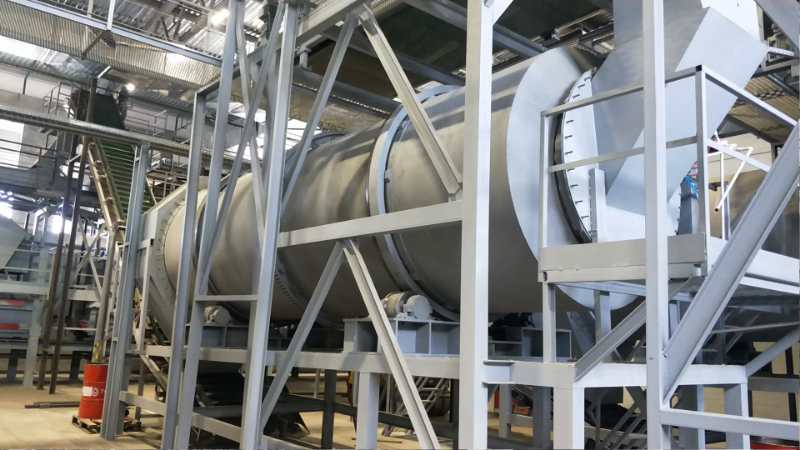

3.Drying section

  The flakes discharged from the wet flake bin are conveyed to the dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.

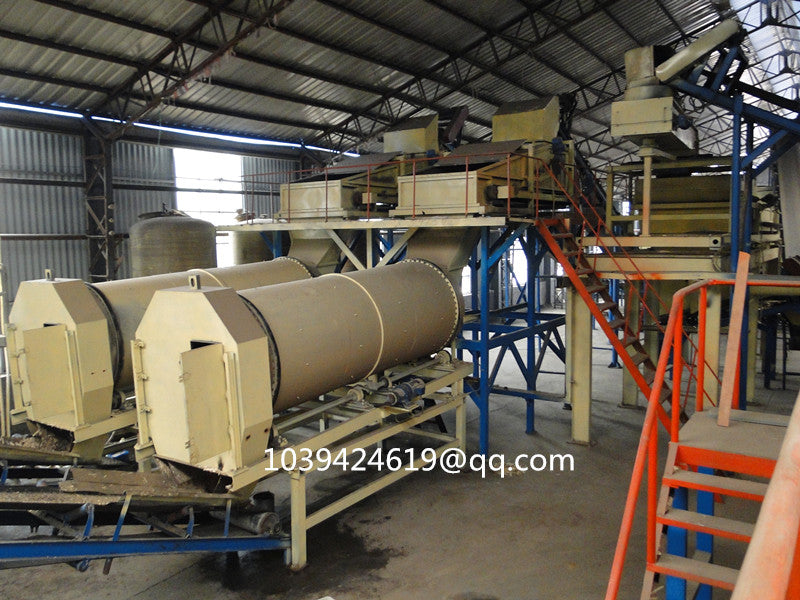

4.Glue dosing and spreader section:

The chips after drying section got the ideal moisture , then mix with the glue together depends on our design ratio.

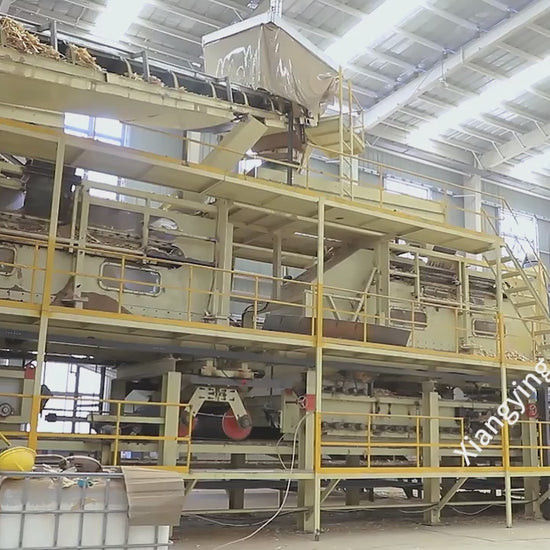

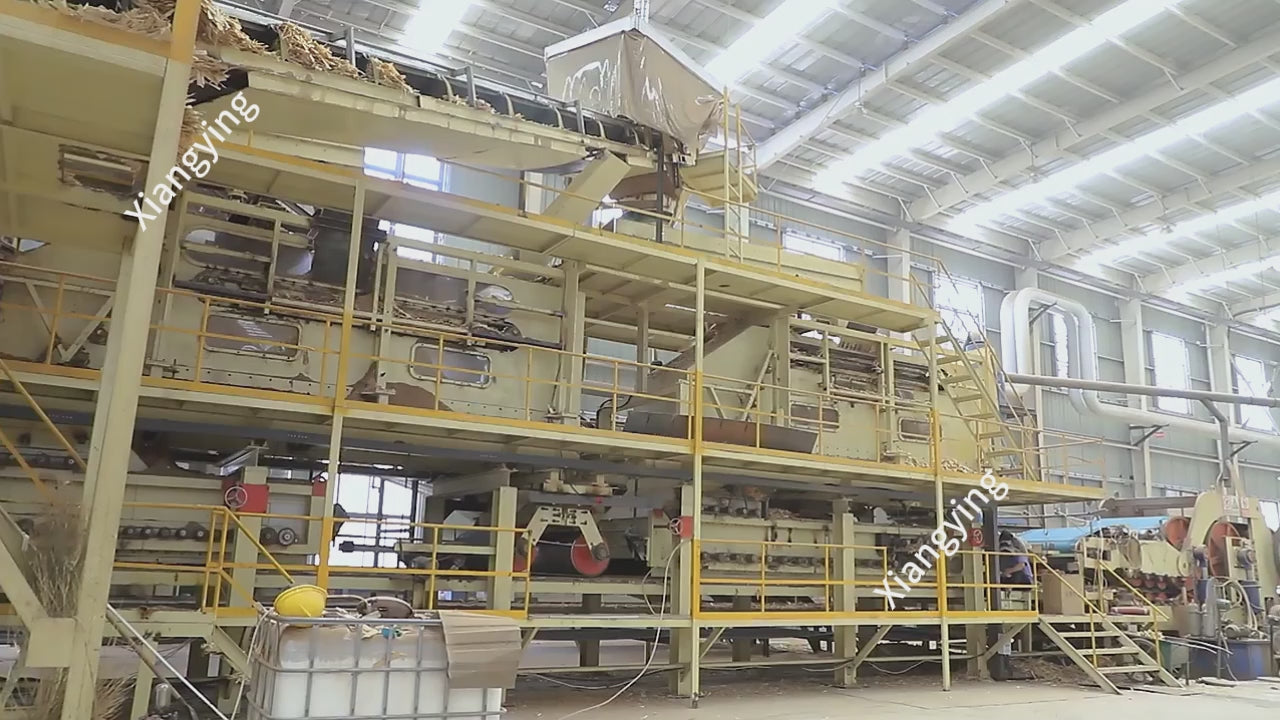

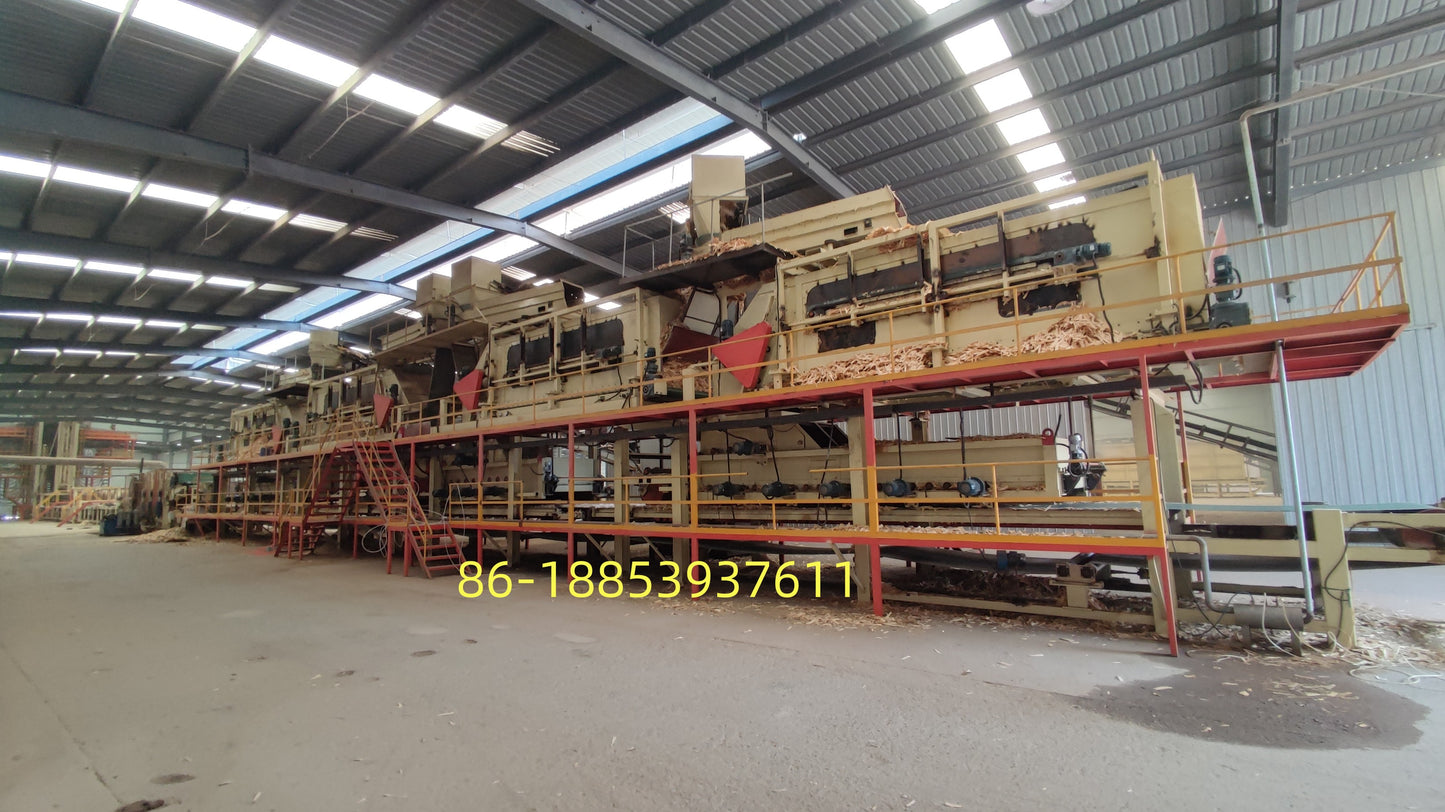

5.Forming section:

The surface and core flakes are sent into chips forming machine, and forming on the mat conveyor length way and width way cross forming uniformly by the orientation plate.

6.Pre-press section:

After the flakes forming on the mat conveyor uniformly, through the metal remover , to the pre-press machine, to make the first form section.

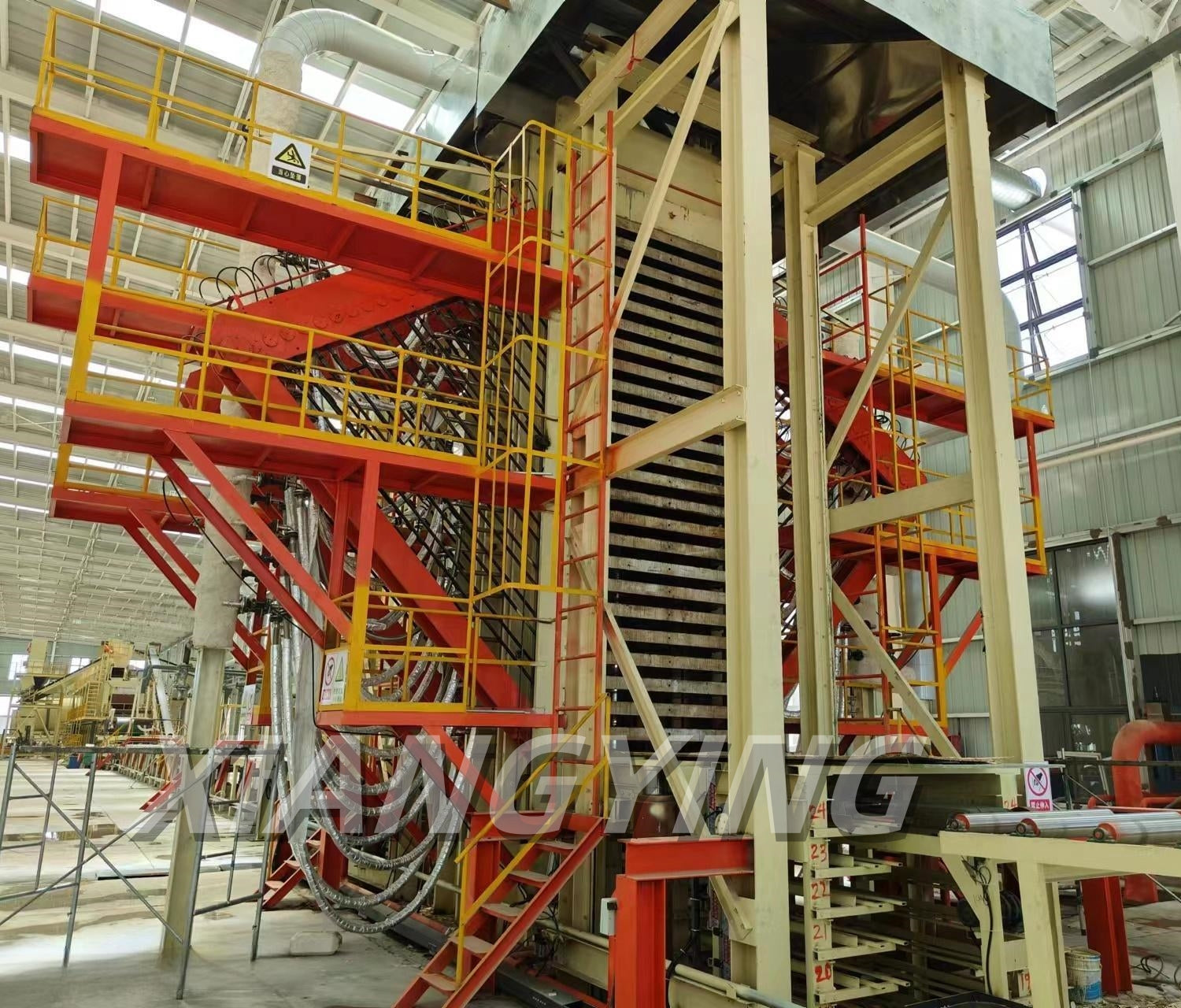

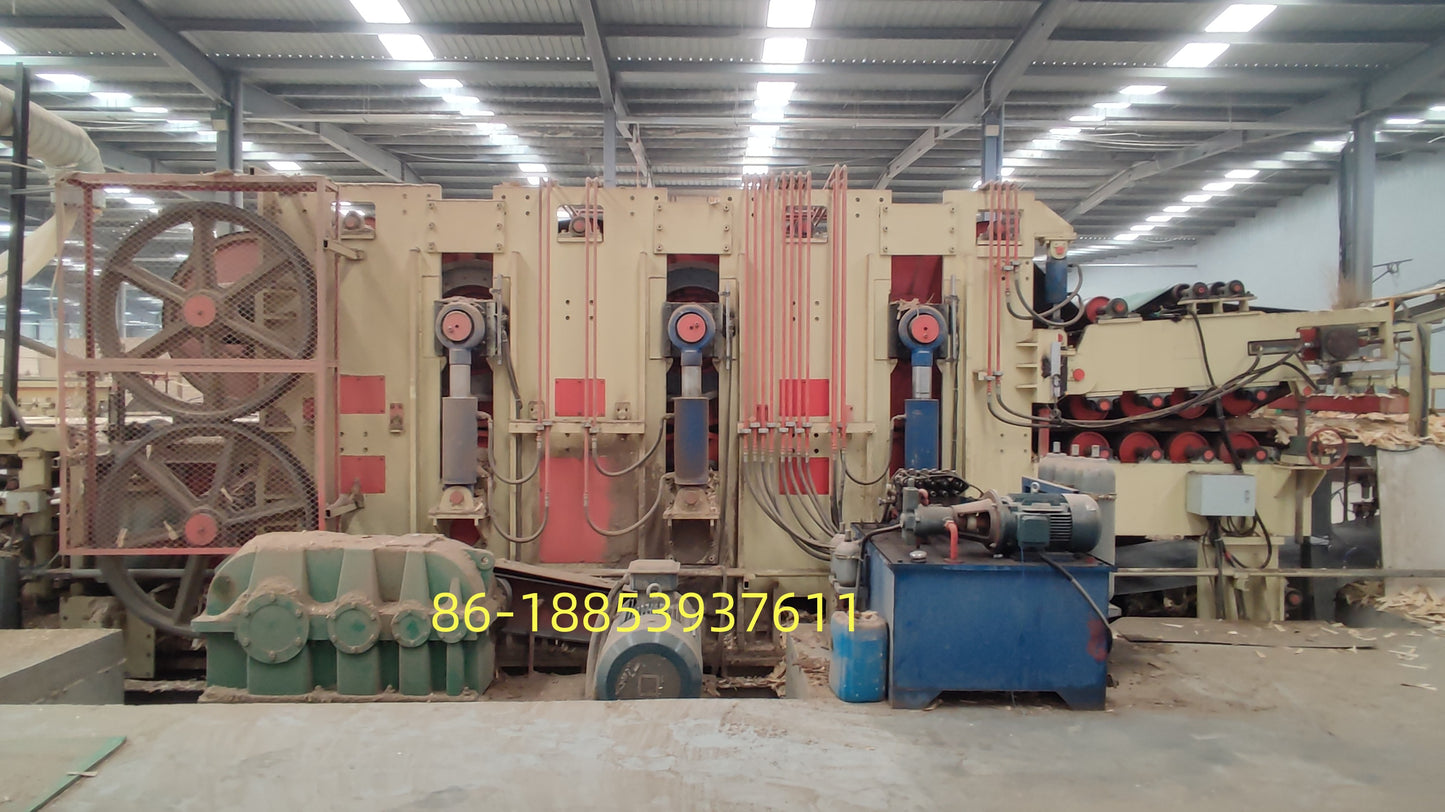

7.Hot press section:

After hot press ,the mats OSB get into the hot press machine , after high pressure and high temperature working ,then we got ideal quality OSB

8.Cooling section:

After hot press, the rough board is conveyed to star-cooler for cooling , cooling machine normally we have circle type and round type ,design depends on customer workshop size.

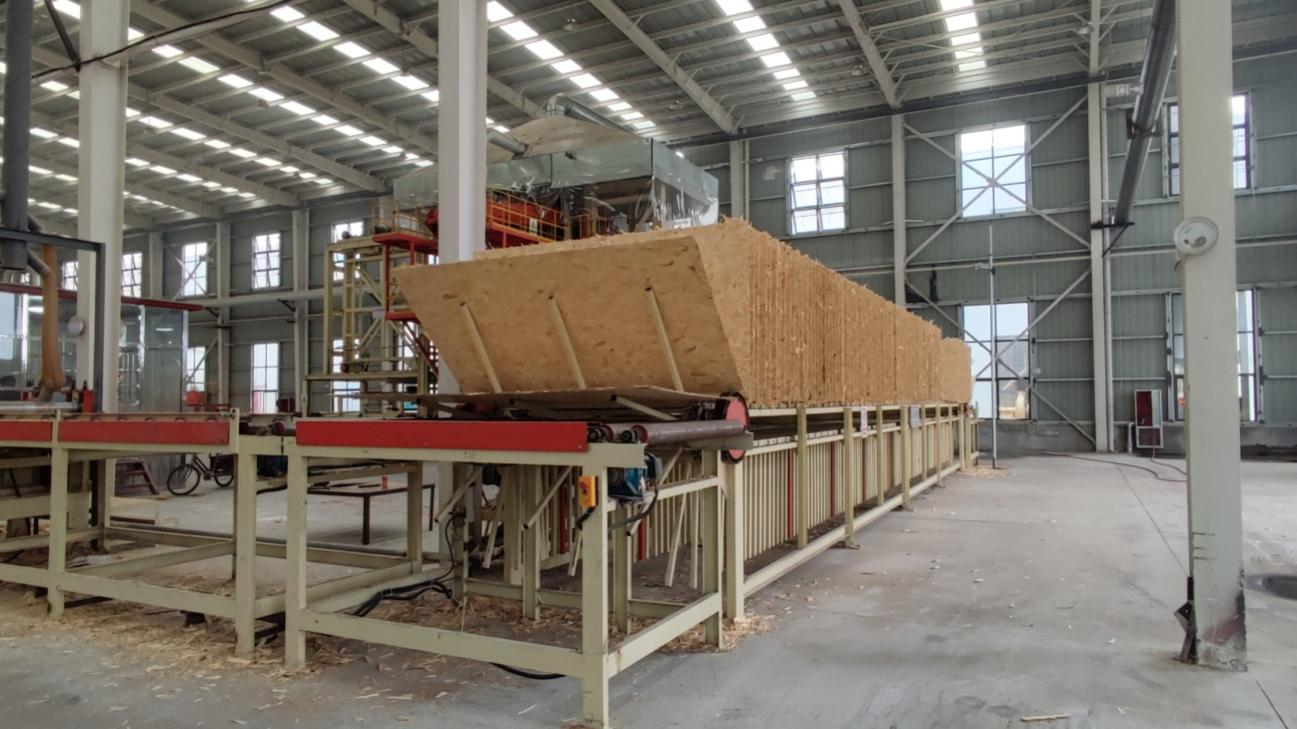

9.Sizing section :

  The rough board is conveyed to star-cooler for cooling , then the rough board goes through side trimming saw and become a qualified OSB, stacked on the hydraulic lift and go to the finally stage for packing.

10.Control section:

Full line use SIMENS PLC control system , full automatic control system ,save labor and improve working efficiency.

12.Packing
