Edge Cutting saw machine for the OSB/LOSB/FOSB production line

The basic composition of：

01.Longitudinal into board roller machine, consisting of 1400 x 108 drive roller, roller tilt, installation, installation guide rod, slab close to guide rod into the longitudinal sawing machine, by adjusting the guide feet make lumber of edge on both sides of the same width.

02.Longitudinal sawing machine consists of base, left and right of sawing machine and conveying mechanism. Saw around is to install saw blade motors, sawing, sawing line of the body. Bottom allied adjustment screw, manually adjust the width of sawed into boards. Conveying mechanism consists of four groups of drive roller clamping slab, prevent slab buckling affect the cutting precision.

03.Transition roller machine, consisting of 700 x 108 drive roller, make the longitudinal saw the rapid transfer to the transverse saw edge machine, vertical and horizontal transformation.

04.Transverse saw, by the framework, chain drive, the upper pressure roller, left and right sides of sawing machine. Chain pushes the slab, under the suppression of pressure wheel, steady fast feed, complete transverse cut edge. By adjusting the distance to achieve chain push board sheet into diagonal error in line with national standards.

05.Roller machine, fast separation by the framework and the roller, motor reducer unit, is used after horizontal sawing machine cutting transfer sheet to the stacker.

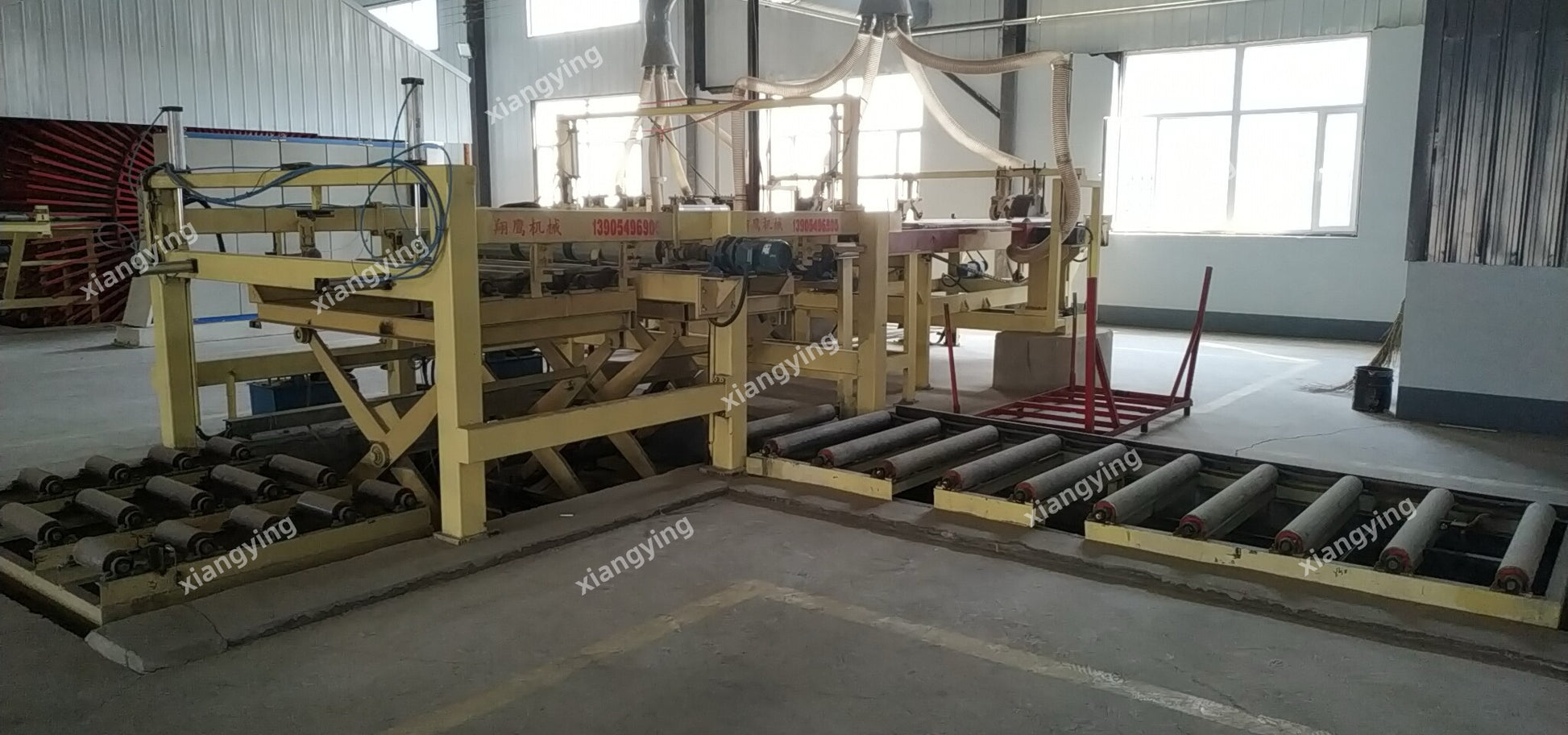

06.Piling machine and the plate roller, by lifting table, roll machine, hydraulic station, cylinder and pneumatic valve, every transfer to a plate, automatic cylinder pushing board's (vertical and horizontal push once, lifting platform is a lower (photoelectric medallion control) lifting platform to the lower limit, the plate roller drum operation, the entire crib board.

Located in Linyi City,Shandong Province,"the Largest Wood BasedPanel Production Base of Asia”,LINYI XIANGYING MACHINERY MANUFACTURING CO.LTD (Linyi Xiangying Machinery Manufacturing Co.,Ltd)is an aggressive manufacturer which specialized in research, development, manufacture and marketing in the field of wood working machines.Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.Our main products are Particle board production line,Plywood production line,MDF production line,Melamine laminating product online, etc. Based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20counties such as Vietnam, Malaysia, Pakstan, Bangladesh,Russia,Turkey and so on.And they are all well praised by our clients.Choose Xiangying machinery,Create measureless value.
