Full automatic Multi-layer Wood/Bagasse/Reed Particle board production line/Chip board production line manufacturer

Located in Linyi City,Shandong Province,"the Largest Wood BasedPanel Production Base of Asia”,LINYI XIANGYING MACHINERY MANUFACTURING CO.LTD (Linyi Xiangying Machinery Manufacturing Co.,Ltd)is an aggressive manufacturer which specialized in research, development, manufacture and marketing in the field of wood working machines.Since it was established in 1992, more then 35 years experience on Particle board production line , MDF and OSB production line. Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.Our main products are Particle board production line,Plywood production line,MDF production line,Melamine laminating product online, etc. Based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20counties such as Vietnam, Malaysia, Pakstan, Bangladesh,Russia,Turkey and so on.And they are all well praised by our clients.Choose Xiangying machinery,Create measureless value.

  ^{Particleboard is made from small-diameter wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and sheep decoration and lamination.}

^{1.Chip preparation section

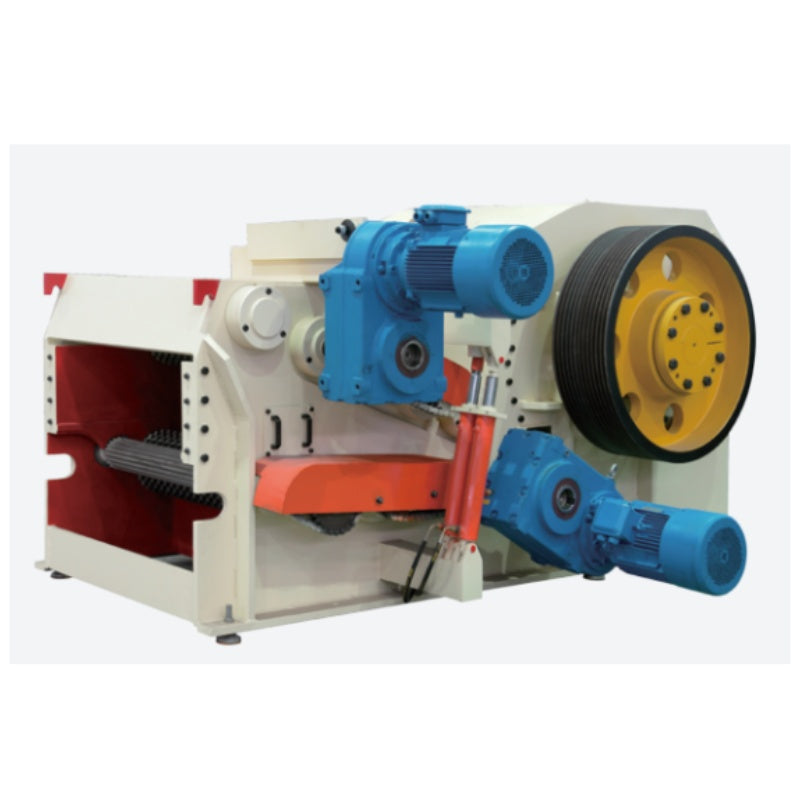

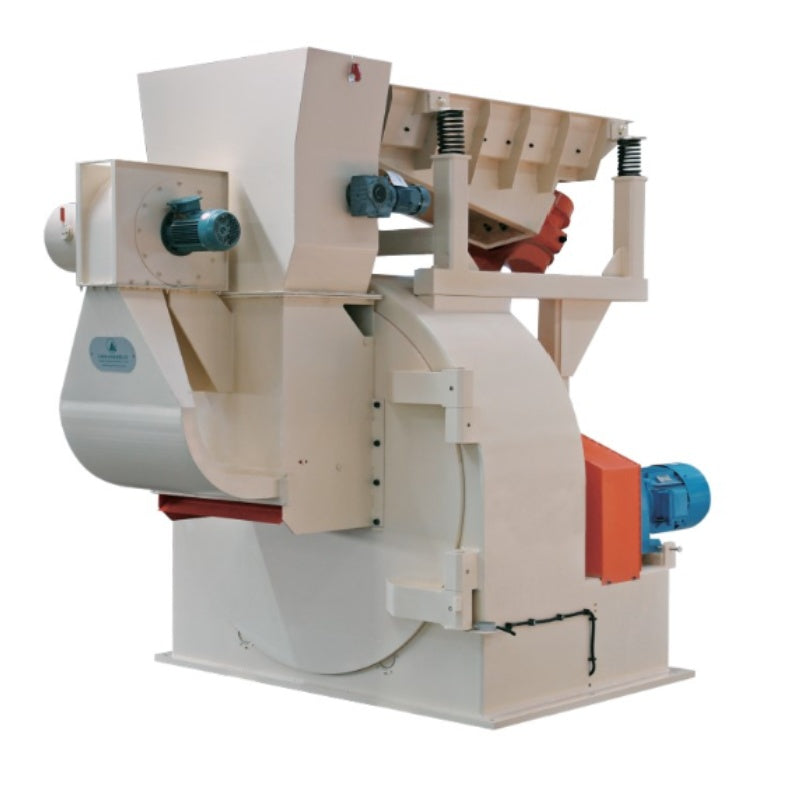

Raw material is reduced into qualified chips by the drum chipper,  then the chips are transported to the chip bin, and then feed to the  knife-ring flaker by which the chips are turned to flakes, then the  flake stored in wet flake bin.}

^{2.Drying and sifting section
     The flakes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.}

^{3.Glue regulating and applying section
      After scaled, the core and surface flakes are to be effectively  and uniformly mixed with qualified glue independently in their glue mixers respectively.}

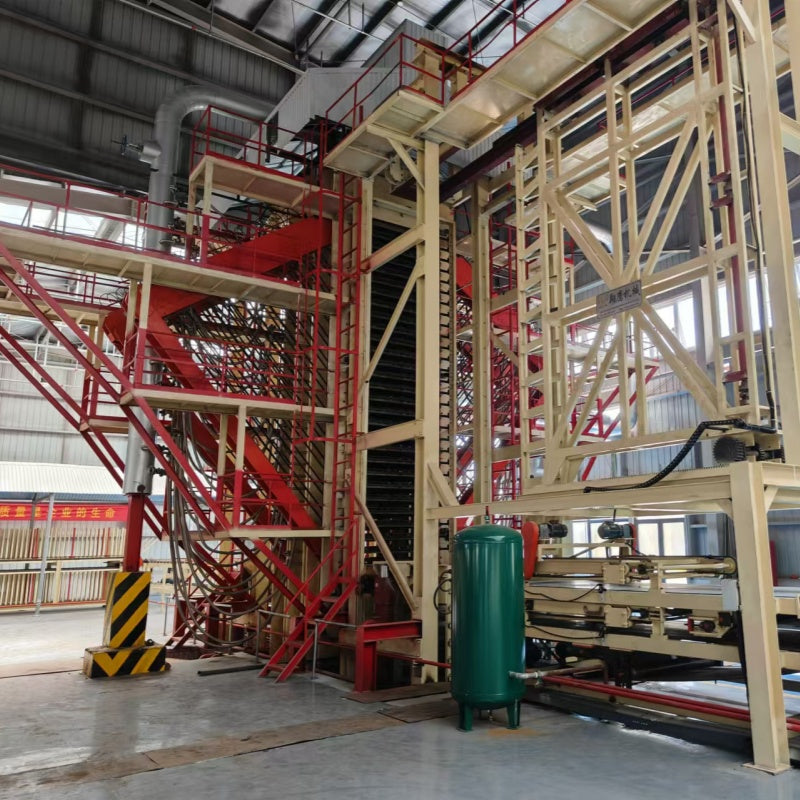

^{4.Forming and hot-pressing section
     The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.}

^{5.Cooling and sizing section
     The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become  a qualified particle-board, stacked on the hydraulic lift.}

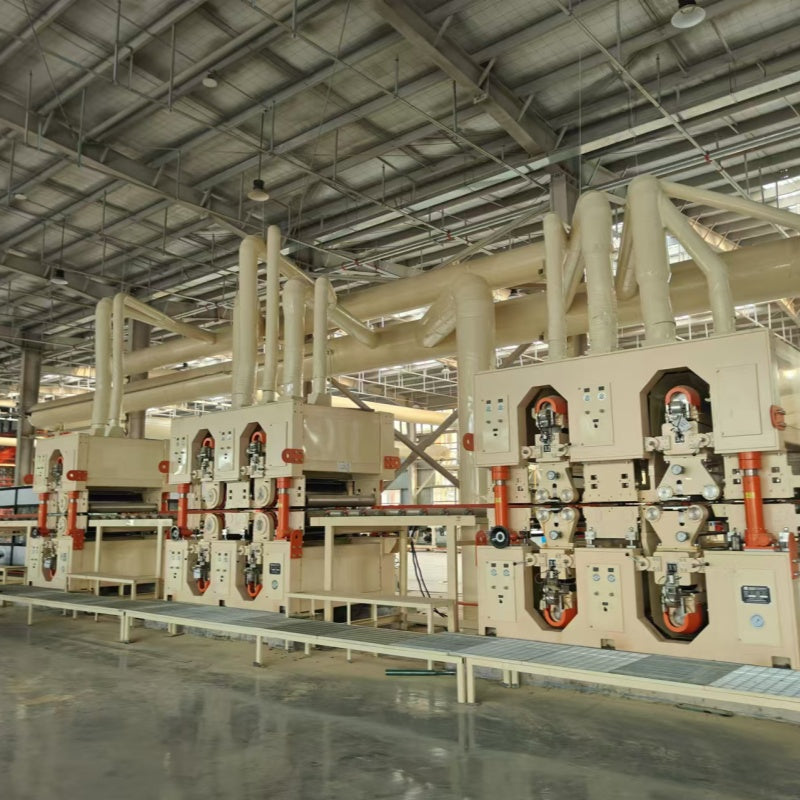

^{6. Sanding Section
      The board are sanded, checked and stored .
      PLC control is used in mat-forming section.}

^{7. Control system}

^{The PLC electronic control system can realized the centralized control of the entire production line and the integrated control of the production process.}

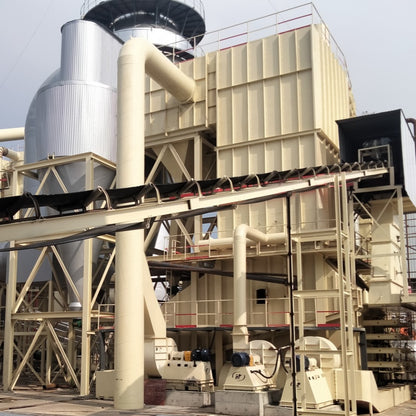

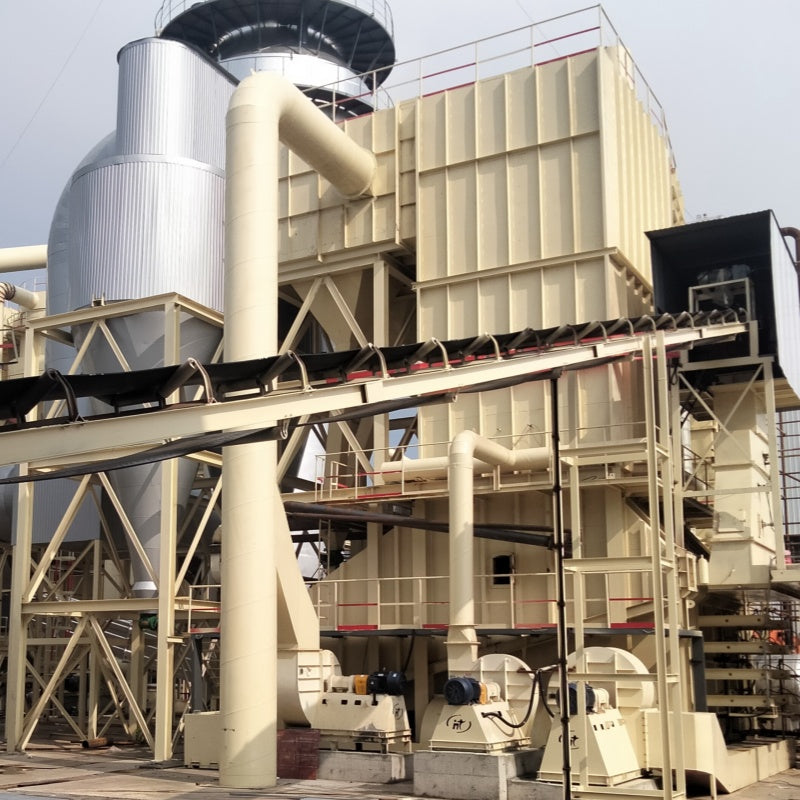

^{8. Heating Energy center}

^{Supply heating for hte process of drying , hot pressing, glue making section .Clorifc valve can customized design from 12-60MW.}

^9.Packing

NO.	Item	Technical data
1	Project name	1. Particle board production line 2.Chip board production line 3.Wood working machinery for Particle board making machinery 4.Full automatic Chip board making machinery manufacturer 5.Wood/bagasse particle board/Chip board machinery production line
2	Board size	48FT: 1220*2440*10-26mm 69FT: 1830*2745*10-26mm
3	Raw material	1. Wood 2. Bagasse 3. Straw  4. Wood waste/scrap  5. Reed
4	Glue	Urea-formaldehyde glue  MDI Phenolic resin
5	Capacity	1. 30000cbm/year(100cbm/day capacity) 2. 50000cbm/year(160-170cbm/day capacity) 3.100000cbm/year(300cbm/day capacity) 4.120000cbm/year(400cbm/day capacity) 5. 150000cbm/year(500cbm/day capacity) 6. 200000cbm/year(600-700cbm/day capacity)
6	Certificate	CE, ISO9001, other Chinese standard certificate
7	Factory Address	LINYI CITY, SHANDONG PROVINCE ,CHINA
8	Power consumption	1000-8000kw/h depends on different capacity
9	Labor	15-20worker/ shift
10	Packing	Normal export packing Wooden box , Film
